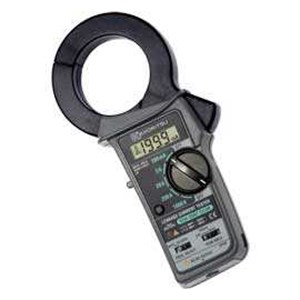

KYORITSU 2413R Leakage Clamp Meters

• Large transformer jaws of 68mm diameter makes it possible to clamp on all three or four wires (3 phases) together for leakage current measurement. • True RMS enables an accurate measurement for distorted waveforms. • Measurement from mA up to AC 1000A • Frequency filter switch to eliminate the effect of the harmonics. • 2 way analogue output terminal: AC current detected by transformer jaws is converted to AC and DC voltage. Output cord model 7073 (option) is used for monitoring waveform with an oscilloscope or for connecting to a recorder. • Peak hold function (Response time is selectable for 10ms or 100ms.) • Data hold function: Allows for easy reading in dimly light or hard-to-reach locations • Back light in the LCD (Automatically off) • International safety standard IEC 61010-1 CAT.III 300V AC A (50/60Hz) : 200mA/2/20/200/1000A |±2.5%rdg±5dgt (200mA/2/20A) |±3.0%rdg±5dgt (200A, 0~500A) |±5.5%rdg (501~1000A) AC A (WIDE) : 200mA/2/20/200/1000A |±1.8%rdg±5dgt (50/60Hz) (200mA/2/20A) |±2.0%rdg±5dgt (50/60Hz) (200A, 0~500A) |±5.0%rdg (50/60Hz) (501~1000A) Conductor Size : Ø68mm max. Frequency Response : 40Hz~1kHz Analogue Output : AC/DC 200mV against 2000 count reading (100mV at the 1000A range) Crest Factor : 3.0 or less Withstand Voltage : 3700V AC for 1 minute Applicable Standard : IEC 61010-1 CAT.III 300V Pollution degree 2 IEC 61010-2-032 Power Source : 6F22 (9V) × 1 *Continuous measuring time: Approx. 60 hours Dimensions : 250(L) × 130(W) × 50(D)mm Weight : Approx. 600g (including battery) Accessories : 9094 (Carrying Case) 6F22 × 1 Instruction Manual Optional : 7073 (2WAY Output Cord)
